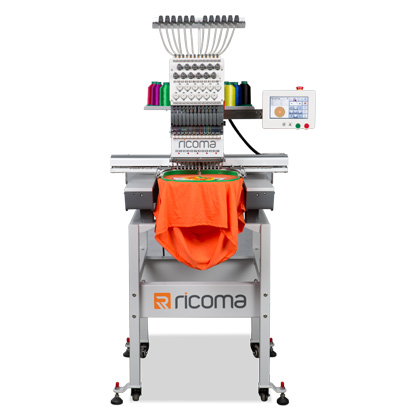

Embroidrey machine

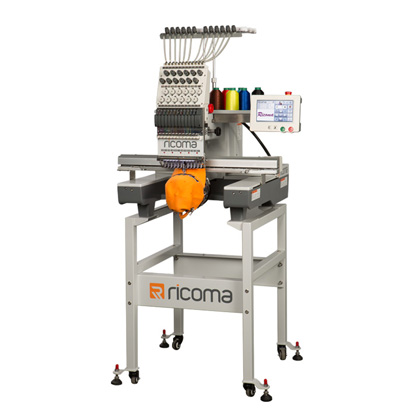

PV-1201

COMMERCIAL EMBROIDERY MACHINES

Specifications
  • Models::

    PV-1201

  • Needles::

    12

  • Net weight::

    105kg

  • Gross weight::

    145kg

  • EMB. area::

    800mm x 500mm [ 32” x 20”]

  • Size::

    L: 1,035mm W: 920mm H: 1,600mm
    L: 40” W: 36” H: 63”

Features


• Suitable for embroidery on flats, caps, fnished
garments and more
• Perfect for startups or home businesses
• High defnition true color 7-inch LCD touch screen
• Maximum embroidery area: 560 mm x 360 mm, or
22”x 14”
• Lightweight – only 90 kgs (200 lbs) for easy
maneuverability
• Heavy duty steel stand with wheels to ensure
stability and mobility
• Maximum speed: 1,200 stitches per minute
• Memory capacity: 20 million stitches or 200 designs
• Machine reads multiple design formats, such as
DST, DSB and more
• 270° wide angle cap system
• USB input or direct transmission from PC via LAN
port or wireless

• Environmentally friendly packaging
• Networkable and Wi-Fi capable
• Servo motor 150 W – lowest power consumption
in the industry!
• Built-in universal power supply 110V/60Hz and
200V/50Hz (self-adaptable worldwide)
• DC36V micro-step motor for X & Y axis driving to
ensure low noise and less vibration
• Emergency stop button
• Automatic thread trimmer
• Thread break detection
• Easily apply appliqué, sequin, boring or cording
• Recessed USB port to protect USB flash drive
• Optional laser tracing device available
• Multiple hoop sizes for a variety of embroidery
needs
• Automatic memory retention

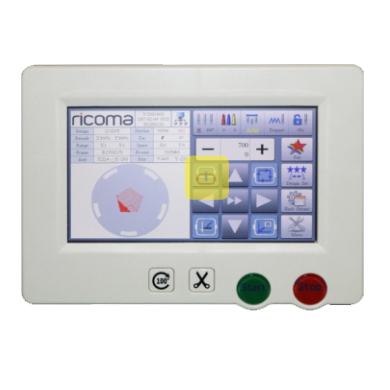

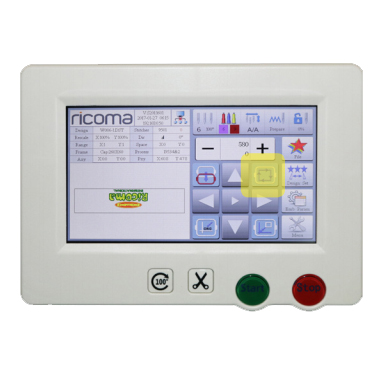

Display
Easy Design Selection

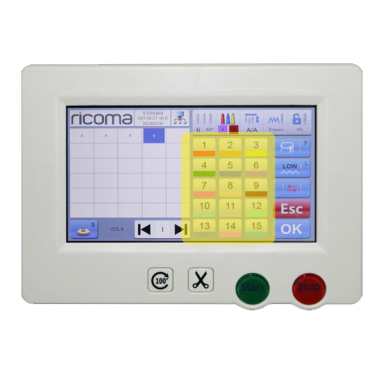

Easy Color Selection
One-Step Appliqué
On-board lettering
Preset Hoops
On-Board Lettering


• User-friendly interface
• Easy to operate
• New ergonomic touch screen allows easy and
comfortable operation by right-hand thumb
• Preset hoop parameters designed to avoid hitting
hoops
• Multi-angle, rotatable and adjustable control panel
bracket allows for better visibility
• Pre-sew design trace capable
• Automatic color change

• Built-in button from 172° to 196° under manual
color change mode, a great help for machine
maintenance
• Frame offset and frame outlining available for easy
appliqué embroidery
• One-step tracing key directly on the main screen
• External 100° button and trimming button
• Multiple languages: English, Chinese, Spanish,
Portuguese, Turkish, Dutch, French, German,
Russian, Vietnamese, Thai, Arabic and more

Hoops and cap attachment
Cap Rings
Cap rings snap into hoop station to prepare machine for cap embroidery
Hoop Station
Hoop station provides stability for fast and easy cap hooping
Cap Driver
Cap driver snaps into embroidery machine’s bracket holder for hoops
Highlights

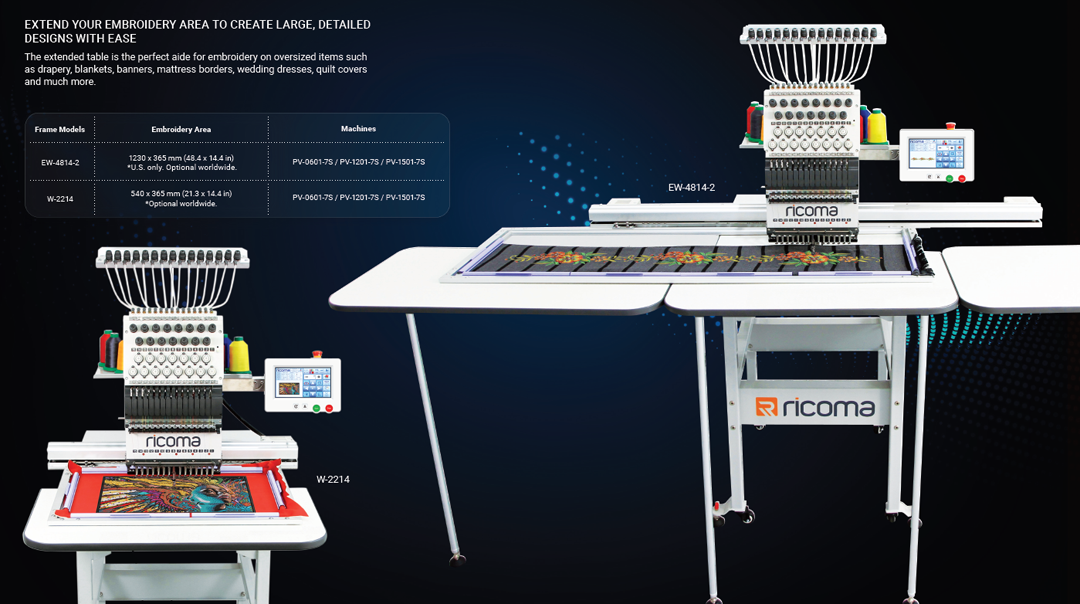

EXTENDED EMBROIDERY AREA
