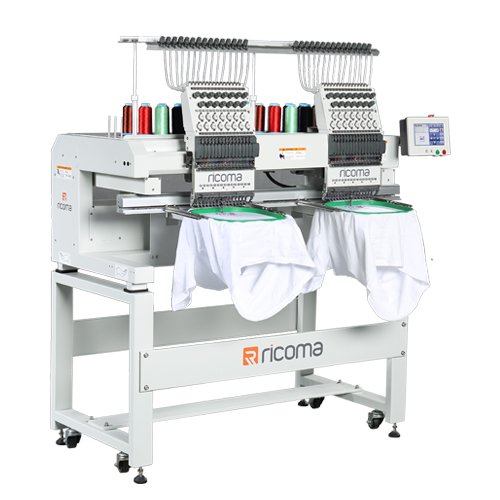

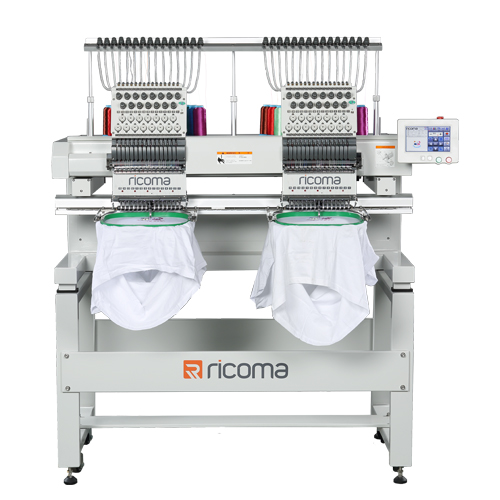

Embroidery machine

MT-02 SERIES

With wide overhead room and a small sewing arm, the MT Series is perfect for embroidery on both bulky and small items.

Specifications
  • Models:

    MT-1502 / MT-1202

  • Needles:

    15/12

  • Heads:

    2 heads

  • Net weight:

    190 kgs / 419 lbs

  • Gross weight:

    535 kgs / 1,180 lbs

  • Size:

    1430 x 770 x 1,600 mm
    56 x 30 x 63 in

  • EMB. area:

    560 x 360 mm / 22 x 14 in

Features


• Suitable for embroidery on flats, caps, fnished
garments and more
• Perfect for startups or home businesses
• High defnition true color 7-inch LCD touch screen
• Maximum embroidery area: 560 mm x 360 mm, or
22”x 14”
• Newly developed small sewing arm for high-quality
embroidery on caps and small items
• Heavy duty steel stand with wheels to ensure
stability and mobility
• Maximum speed: 1,200 stitches per minute for
single-head; 1,000 stitches per minute for two-head
• Memory capacity: 20 million stitches or 200 designs
• Machine reads multiple design formats, such as
DST, DSB and more

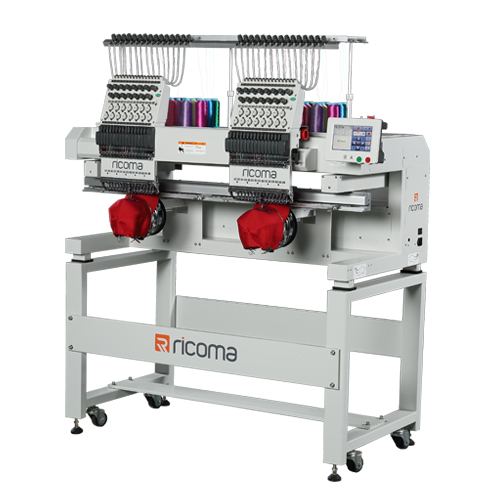

• 270° wide angle cap system
• Environmentally friendly packaging

• USB input or direct transmission from PC via LAN
port or wireless
• Networkable and Wi-Fi capable
• Servo motor 150 W – lowest power consumption in
the industry!
• Built-in universal power supply 110V/60Hz and
200V/50Hz (self-adaptable worldwide)
• DC36V micro-step motor for X & Y axis driving to
ensure low noise and less vibration
• Emergency stop button
• Automatic thread trimmer
• Thread break detection
• Easily apply appliqué, sequin, boring or cording
• Recessed USB port to protect USB flash drive
• Optional laser tracing device available
• Multiple hoop sizes for a variety of embroidery needs
• Automatic memory retention

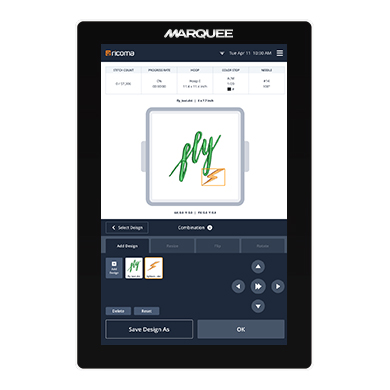

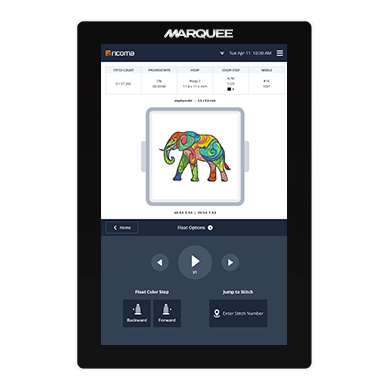

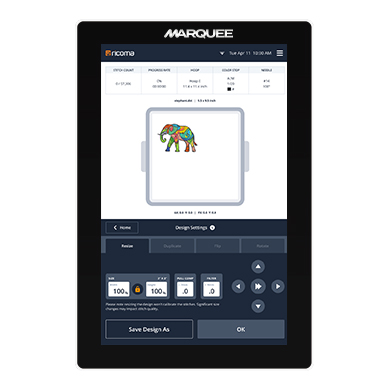

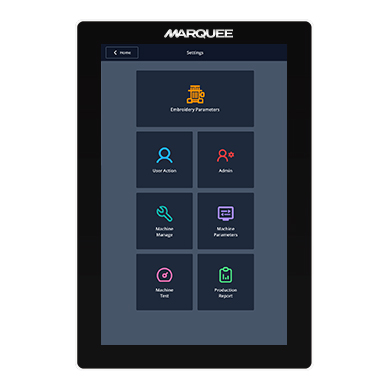

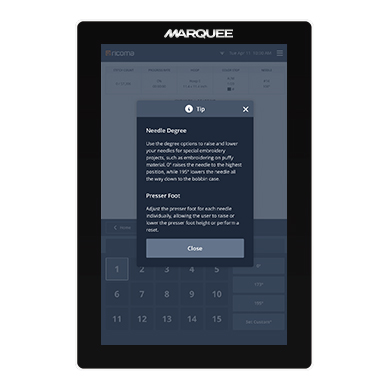

Display
Preset hoops
One-step appliqué

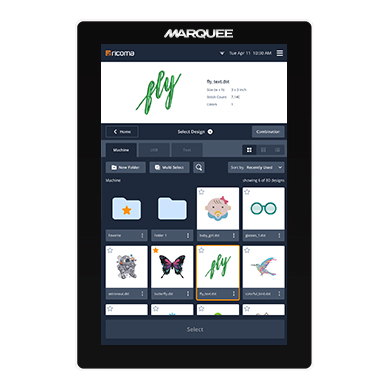

Easy design input

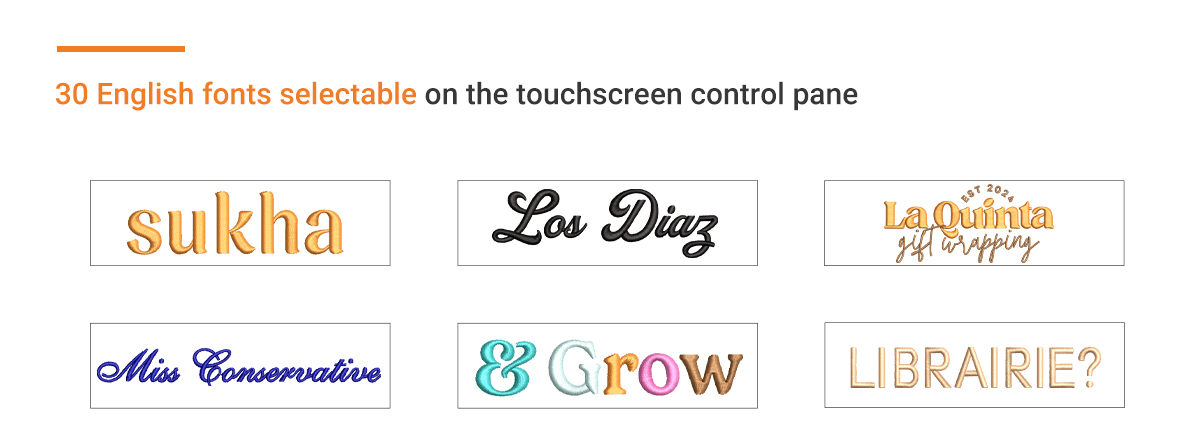

On-board lettering
One-step tracing
Easy design ion

• User-friendly interface
• Easy to operate
• New ergonomic touch screen allows easy and
comfortable operation by right-hand thumb
• Preset hoop parameters designed to avoid hitting
hoops
• Multi-angle, rotatable and adjustable control panel
bracket allows for better visibility
• Pre-sew design trace capable
• Automatic color change

• Built-in button from 172° to 196° under manual
color change mode, a great help for machine
maintenance
• Frame offset and frame outlining available for easy
appliqué embroidery
• One-step tracing key directly on the main screen
• External 100° button and trimming button
• Multiple languages: English, Chinese, Spanish,
Portuguese, Turkish, Dutch, French, German,
Russian, Vietnamese, Thai, Arabic and more

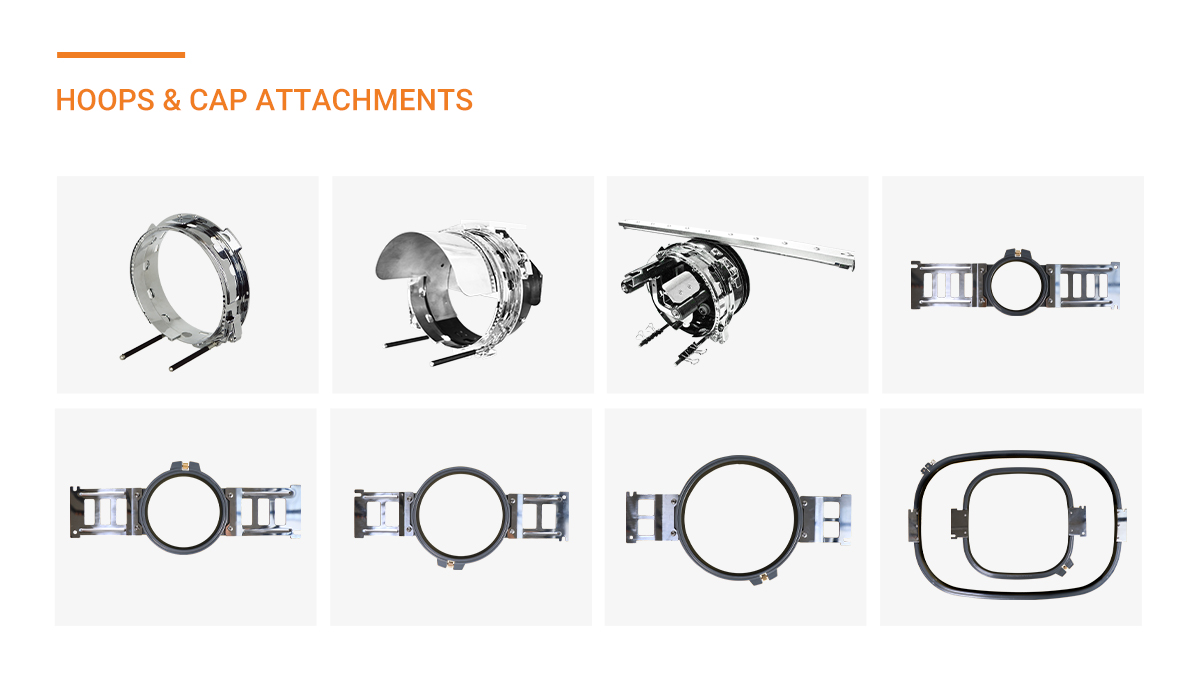

Hoops and cap attachment
Cap ring
Nx2
Hoop station
1
Cap driver
Nx1
(x2)
90 mm round (9 cm, 3.5”)
(x2)
90 mm round (9 cm, 3.5”)
(x2)
150 mm round (15 cm, 5.9”)
(x2)
200 mm round (20 cm, 9”)
(x2)
290 mm square (29 cm, 12”)
(x2)
540 x 350 mm oval (54 x 35 cm, 21 x 14”)
Optional accessories

Sequin device

Boring device

Cording device

8-in-1 device

Robot frame

Belt hoop

Mighty hoop

Camera positioning device

Laser device

Highlights

OPTIONAL EXTENDED EMBROIDERY AREA

Flat table-MT 1

Pair the flat table with the 22” x 14” sash frame for embroidery

on large flats such as blankets, dresses, drapery and more!


NETWORK
CAPABILITY READY

Using advanced network technology, users can link together as many Ricoma MT Series as

desired to an extremely flexible production system. Embroider the same design on all

of your machines at the same time or embroider different designs on individual machines

simultaneously.
