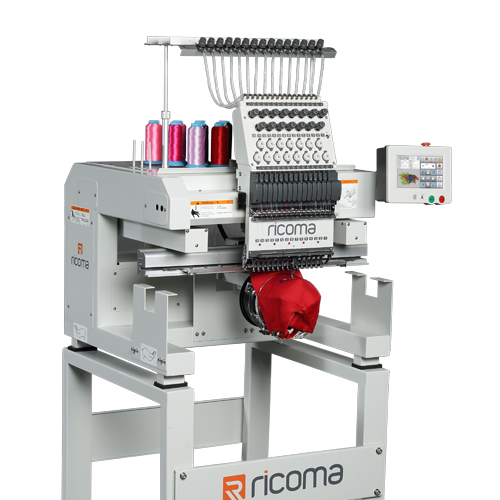

MT-01 SERIES

With wide overhead room and a small sewing arm, the MT Series is perfect for embroidery on both bulky and small items.

Specifications

Models：
MT-1501 / MT-1201
Needles：
15/12
Heads：
1 head
Net weight：
145 kgs / 320 lbs
Gross weight：
238 kgs / 525 lbs
Size：
830 x 770 x 1,600 mm
33 x 30 x 63 in
EMB. area：
560 x 360 mm / 22 x 14 in
LCD：
7 in

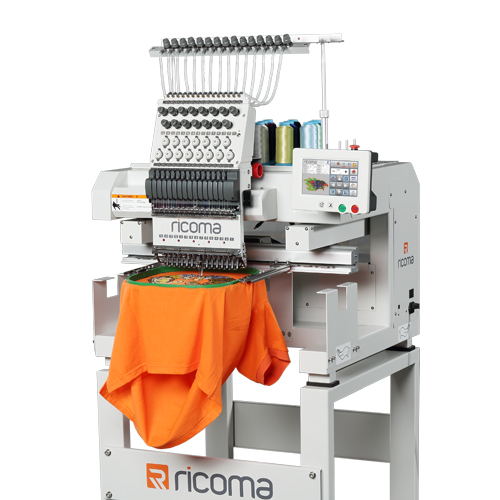

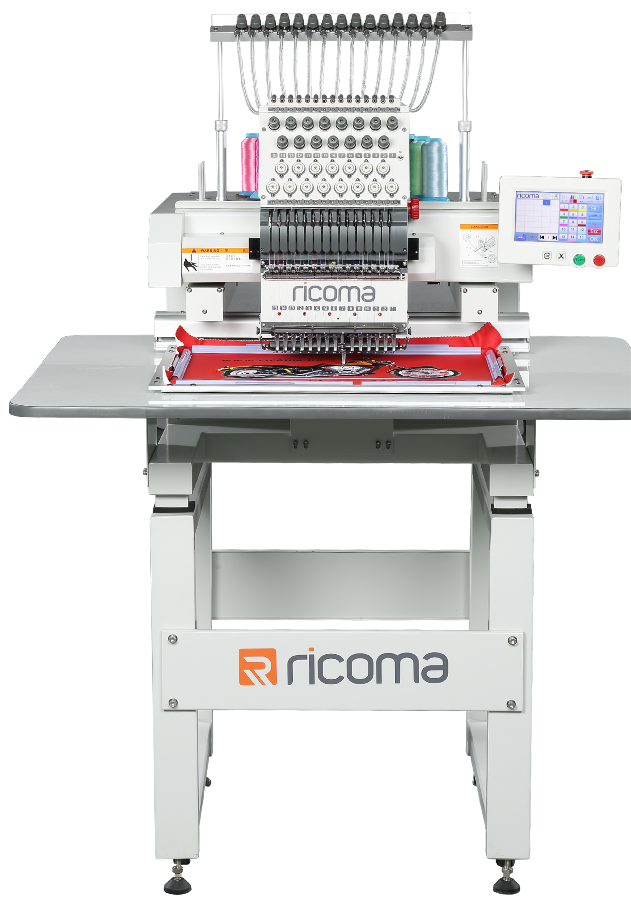

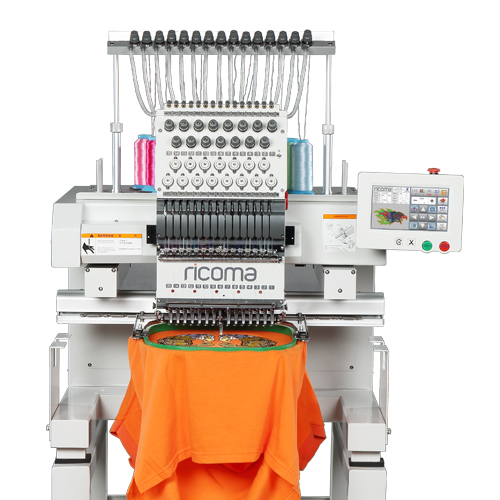

MT-01 SERIES

With wide overhead room and a small sewing arm, the MT Series is perfect for embroidery on both bulky and small items.

Specifications

Models：
MT-1501 / MT-1201
Needles：
15/12
Heads：
1 head
Net weight：
145 kgs / 320 lbs
Gross weight：
238 kgs / 525 lbs
Size：
830 x 770 x 1,600 mm
33 x 30 x 63 in
EMB. area：
560 x 360 mm / 22 x 14 in
LCD：
7 in

Features

• Suitable for embroidery on ﬂats, caps, fnished
garments and more
• Perfect for startups or home businesses
• High defnition true color 7-inch LCD touch screen
• Maximum embroidery area: 560 mm x 360 mm, or
22”x 14”
• Newly developed small sewing arm for high-quality
embroidery on caps and small items
• Heavy duty steel stand with wheels to ensure
stability and mobility
• Maximum speed: 1,200 stitches per minute for
single-head; 1,000 stitches per minute for two-head
• Memory capacity: 20 million stitches or 200 designs
• Machine reads multiple design formats, such as
DST, DSB and more
• 270° wide angle cap system
• Environmentally friendly packaging

• USB input or direct transmission from PC via LAN
port or wireless
• Networkable and Wi-Fi capable
• Servo motor 150 W – lowest power consumption in
the industry!
• Built-in universal power supply 110V/60Hz and
200V/50Hz (self-adaptable worldwide)
• DC36V micro-step motor for X & Y axis driving to
ensure low noise and less vibration
• Emergency stop button
• Automatic thread trimmer
• Thread break detection
• Easily apply appliqué, sequin, boring or cording
• Recessed USB port to protect USB ﬂash drive
• Optional laser tracing device available
• Multiple hoop sizes for a variety of embroidery needs
• Automatic memory retention

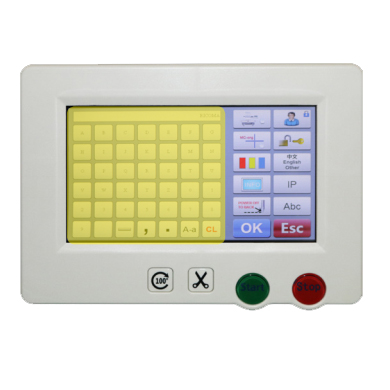

Display

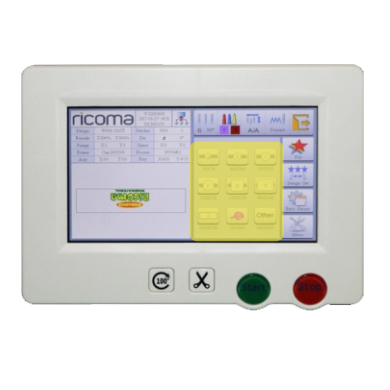

Preset hoops

One-step appliqué

Easy design input

On-board lettering

One-step tracing

Easy design ion

• User-friendly interface
• Easy to operate
• New ergonomic touch screen allows easy and
comfortable operation by right-hand thumb
• Preset hoop parameters designed to avoid hitting
hoops
• Multi-angle, rotatable and adjustable control panel
bracket allows for better visibility
• Pre-sew design trace capable
• Automatic color change

• Built-in button from 172° to 196° under manual
color change mode, a great help for machine
maintenance
• Frame offset and frame outlining available for easy
appliqué embroidery

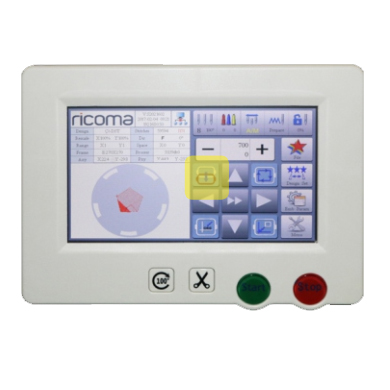

• One-step tracing key directly on the main screen
• External 100° button and trimming button
• Multiple languages: English, Chinese, Spanish,
Portuguese, Turkish, Dutch, French, German,
Russian, Vietnamese, Thai, Arabic and more

Hoops and cap attachment
