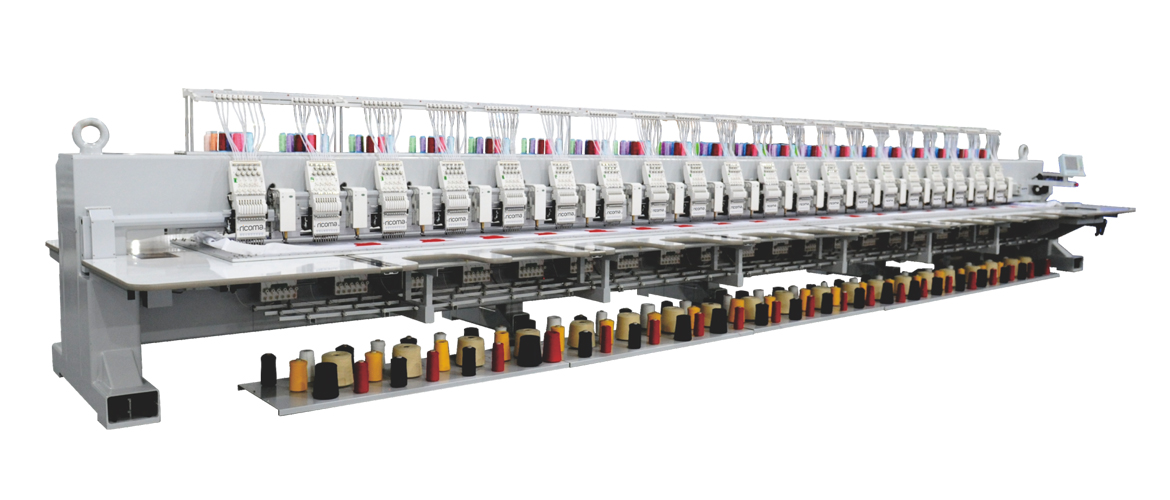

Embroidery machine

MFC SERIES

Available in up to 20 heads, you can scale your chenille embroidery and traditional embroidery production with this 2-in-1 multi-head machine.

Features


•Servo motor for main axis movement
•Servo motors for X and Y axis movements
•Intelligent thread break detection system
•Double cam drive system
• Automatic trimming
• AC motor for color change
• Motor-controlled jump stitch
• Integrated AC motor hooking system
• Servo motor for D shaft
• Servo motor for H shaft
• Stepping motor trimming for chenille embroidery
• Heavy duty linear guide rail for X and Y axis driving
• Reinforced frame materials
• Rail type of frame guide rail
• Heavy duty frame bearing

• No-contact inductive lever switch
• Thread break detection
• Automatic or manual color change, automatic start
• Cyclic embroidery, design editing and design combination
• Memory design display and preview
• Setting the offset point and save design origin point
• Forward and rewind designs at high and low speeds
• Rotate, resize, edit and multiply designs
• Edit design density and compensation directly on screen
• Design tracing helps ensure your needle does not hit the hoop
• Preset hoops set hoop boundaries for perfect centering
• Return to the start point or end point
• Multiple languages available
• Can chenille embroidery, monogram, mixed chenille and flat embroidery



Specifications
Model Flat Chenille Head
interval
Max speed
for flat
Max speed
for chenille
EMB area
(mm)
Machine dimension (mm)
Needles Heads Needles Heads mm SPM
SPM X Y A B C D
length max
width
height
to table
length
MFC-060915-T450-X450Y750 9 15 6 15 450 1000 850 450 750 8460 2020 1450 1700
MFC-060918-T450-X450Y750 9 18 6 18 450 1000 850 450 750 9910 2020 1450 1700
MFC-060920-T450-X450Y800 9 20 6 20 450 1000 850 450 800 10810 2120 1500 1700
Optional accessories

Sequin

Cording

Boring and chenille device
