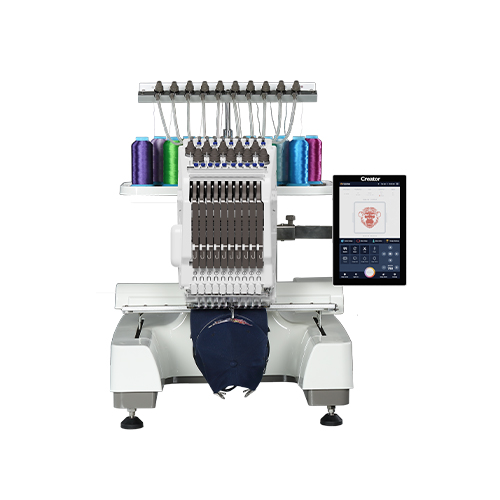

Embroidery machine


The EM-1010 is perfect for home embroidery on caps, flats, finished garments and more!

  • Models:


  • Needles:


  • Heads:


  • Net weight:

    45 kilograms [99 lbs]

  • Gross weight:

    74 kilograms [165 lbs]

  • EMB. area:

    310mm x 210mm [ 12” x 8” ]

  • Size:

    L: 711mm W: 660mm H: 1575mm
    L: 28” W: 26” H: 62”

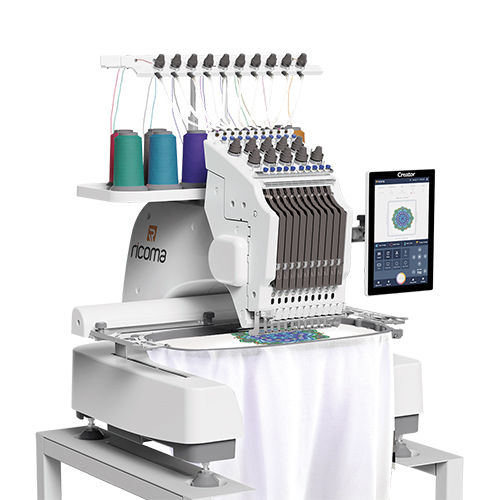

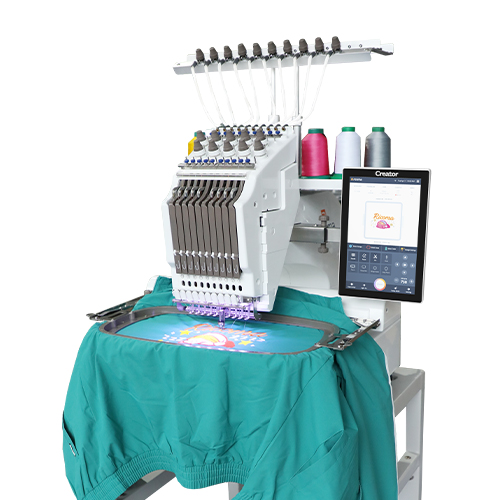

• Suitable for embroidery on flats, caps, fnished
garments and more
• Perfect for beginners and advanced hobbyists

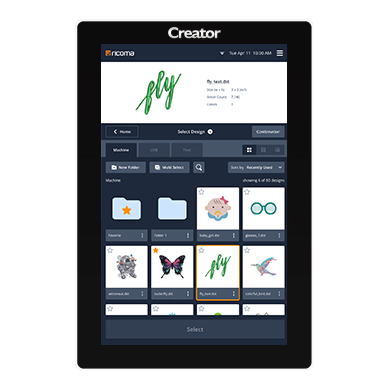

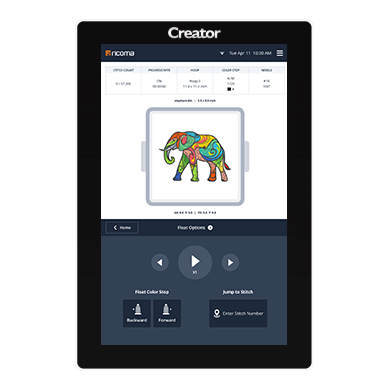

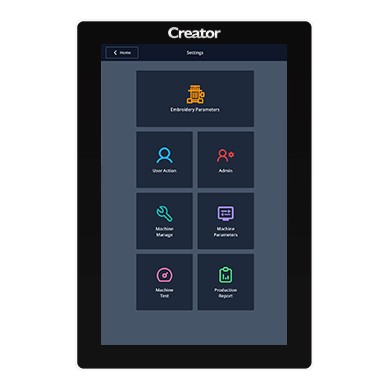

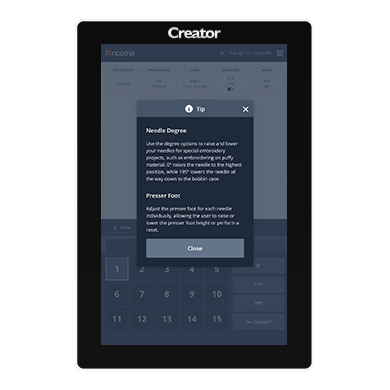

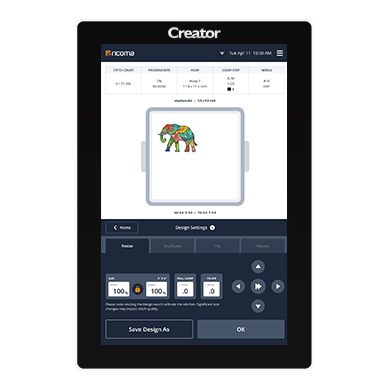

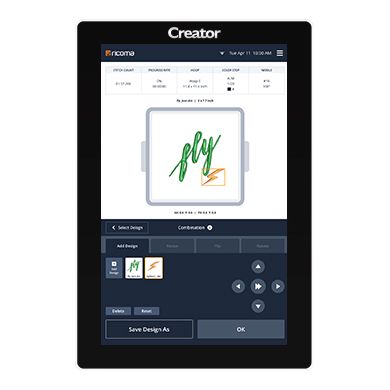

• High defnition true color 7-inch LCD touch screen
• Maximum embroidery area: 310 mm x 210 mm, or
12”x 8”
• Lightweight – only 45 kgs (99 lbs) for easy

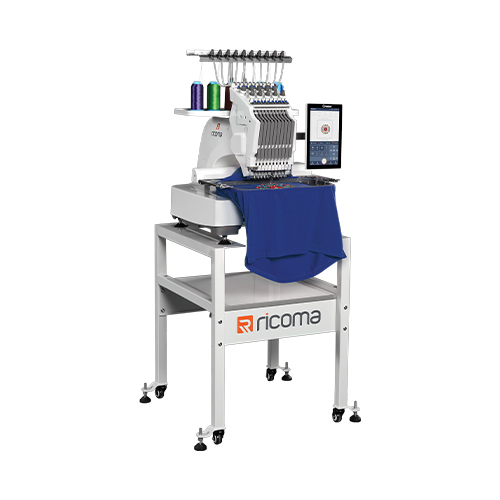

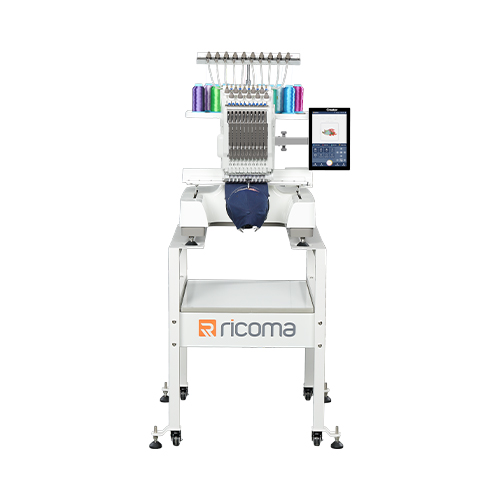

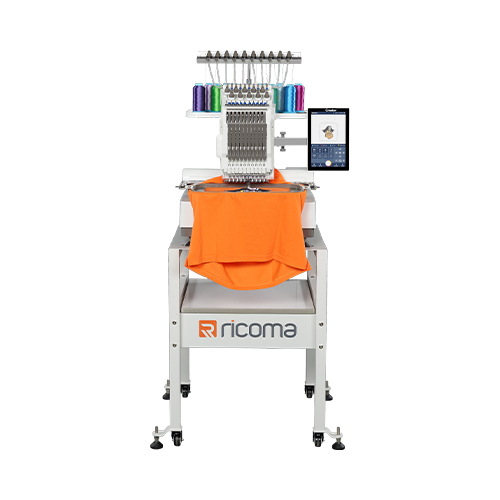

• Heavy duty steel stand with wheels to ensure
stability and mobility
• Maximum speed: 1,000 stitches per minute
• Memory capacity: 20 million stitches or 200 designs
• Machine reads multiple design formats, such as
DST, DSB and more

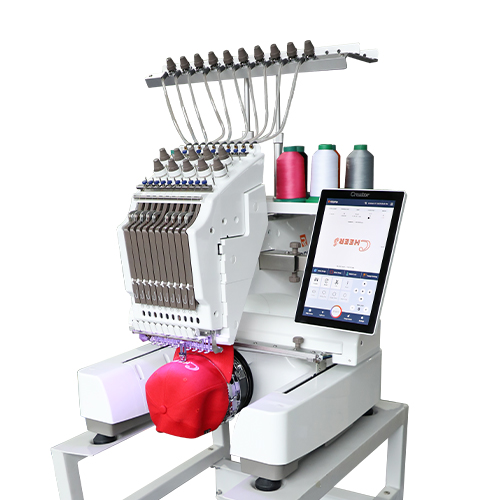

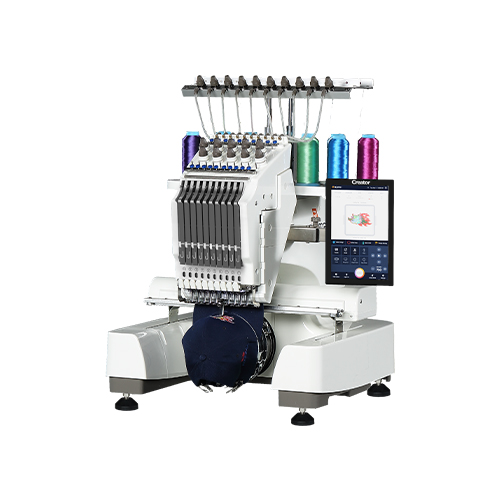

• 220° wide angle cap system

• Environmentally friendly packaging

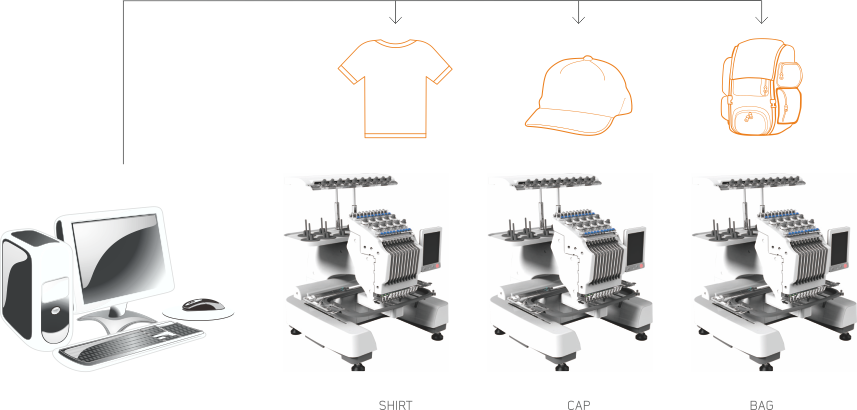

• USB input or direct transmission from PC via LAN
port or wireless
• Networkable and Wi-Fi capable
• Servo motor
• Built-in universal power supply 110V/60Hz and
200V/50Hz (self-adaptable worldwide)
• Emergency stop button
• Automatic thread trimmer
• Thread break detection
• Easily apply appliqué
• Recessed USB port to protect USB flash drive
• Optional laser tracing device available
• Multiple hoop sizes for a variety of embroidery needs
• Automatic memory retentio

Preset hoops
One-step appliqué
Easy design input
On-board lettering
One-step tracing
Easy design ion

• User-friendly interface
• Easy to operate, ergonomic design
• Preset hoop parameters designed to avoid hitting
• Multi-angle, rotatable and adjustable control panel
bracket allows for better visibility
• Pre-sew design trace capable
• Frame offset and frame outlining available for easy
appliqué embroidery

• Built-in button from 172° to 196° under manual
color change mode, a great help for machine
• One-step tracing key directly on the main screen
• External 100° button and trimming button
• Multiple languages: English, Chinese, Spanish,
Portuguese, Turkish, Dutch, French, German,
Russian, Vietnamese, Thai, Arabic and more
• Automatic color change

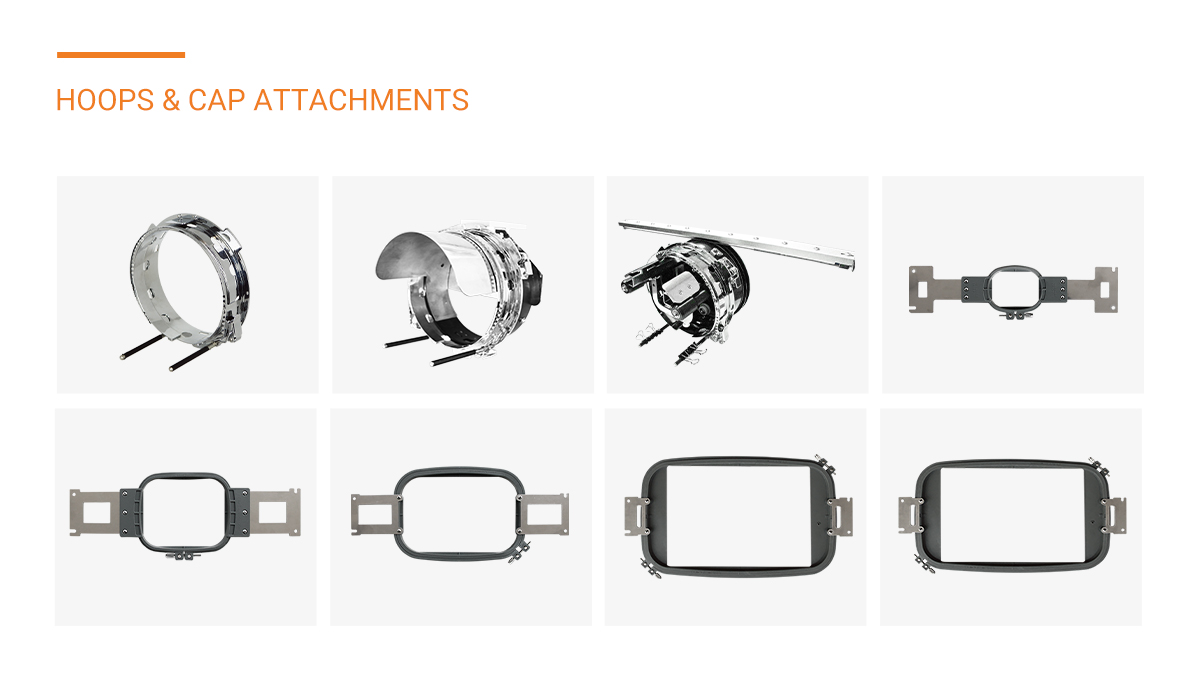

Hoops and cap attachment
Cap ring
(x2) Cap rings snap into hoop station to prepare machine for cap embroidery
Hoop station
(x1) Hoop station provides stability for fast and easy cap hooping
Cap driver
(x1) Cap driver snaps into embroidery machine’s bracket holder for hoops
70mm x 50mm (7cm x 5cm, 2.8” x 2”)
110mm x 110mm (11cm x 11cm, 4.3” x 4.3”)
190mm x 140mm (19cm x 14cm, 7.5” x 5.5”)
310mm x 210mm (31cm x 21cm, 12.2” x 8.2”)
Optional accessories

Sequin device

Boring device

Cording device

8-in-1 device

Robot frame

Belt hoop

Mighty hoop

Camera positioning device

Laser device
