Embroidery machine

CHT-1502-LC

WITH LASER cutting DEVICE

Specifications
  • Needles:

    15

  • Heads:

    2

  • Max speed:

    1000 spm

  • Panel:

    Intuitive 10.4” true color LCD touch screen

  • Maximum embroidery area:

    400 x 450 mm (15.7 x 17.7 in)

  • Net weight:

    400 kgs (882 lbs)

  • Dimensions:

    1820 x 980 x 1600 mm (71.7 x 38.6 x 63 in)

Features


• Suitable for embroidery on flats, caps, fnished garments
and more
• Perfect for established and growing embroidery businesses
• 10.4-inch HD LCD touch-screen panel
• Maximum embroidery area: 400 mm x 450 mm [16” x 18”]
• Optional wide model with embroidery area of 500 mm x
450 mm [20” x 18”]
• Newly developed small sewing arm for high-quality
embroidery on caps and small items
• Heavy duty steel stand with wheels to ensure stability and
mobility
• Maximum speed: 1,000 stitches per minute
• Memory capacity: 50 million stitches or 200 designs
• Machine reads multiple design formats, such as DST, DSB
and more
• 270° wide angle cap system

• Servo motor 150 W – lowest power consumption in the
industry!
• DC36V micro-step motor for X & Y axis driving to ensure low
noise and less vibration
• Automatic memory retention
• Emergency stop button
• Automatic thread trimmer
• Thread break detection
• Easily apply appliqué, sequin, boring or cording
• Recessed USB port to protect USB flash drive
• Optional laser tracing device available
• Multiple hoop sizes for a variety of embroidery needs
• Built-in universal power supply 110V/60Hz and 200V/50Hz
(self-adaptable worldwide)
• Environmentally friendly packaging
• USB input

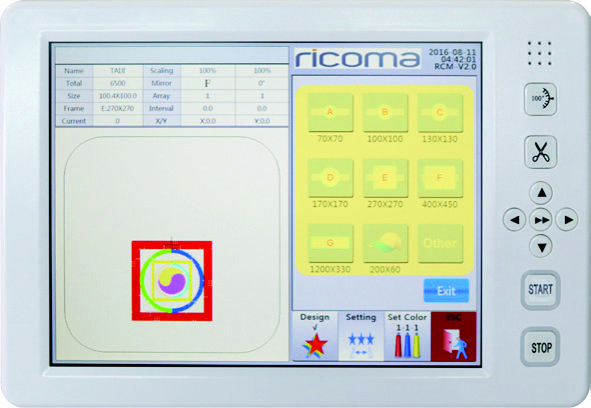

Display
Preset hoops
One-step appliqué

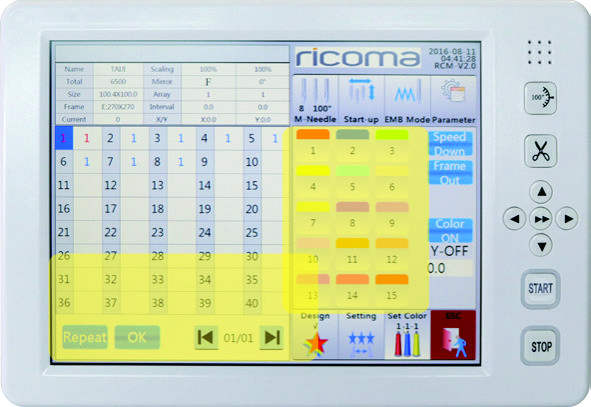

Easy color ion

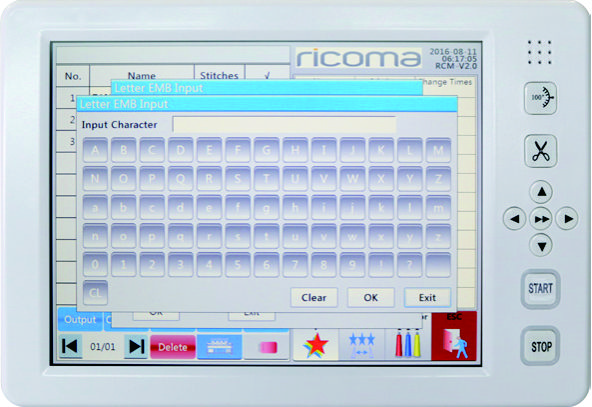

On-board lettering

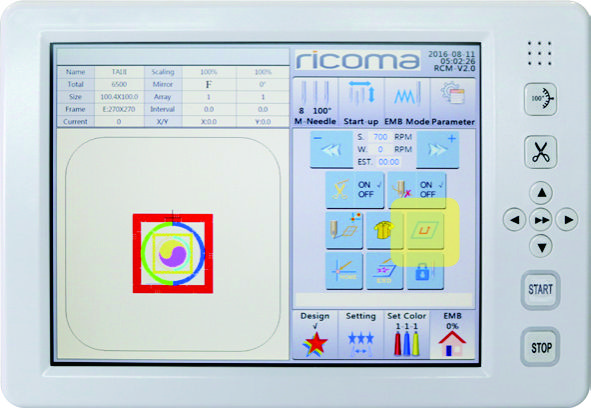

One-step tracing

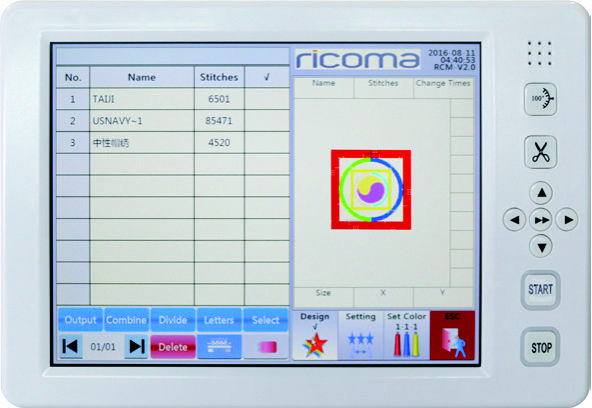

Easy design input


• User-friendly interface
• Easy to operate
• New ergonomic touch screen allows for easy
and comfortable operation
• Preset hoop parameters designed to avoid
hitting hoops
• Multi-angle, rotatable and adjustable control
panel bracket allows for better visibility
• Pre-sew design trace capable
• Automatic color change

• Built-in button from 172° to 196° under manual
color change mode, a great help for machine
maintenance
• Frame offset and frame outlining available for
easy appliqué embroidery
• One-step tracing key directly on the main screen
• External 100° button and trimming button
• Multiple languages: English, Chinese, Spanish,
Portuguese, Turkish, Dutch, French, German,
Russian, Vietnamese, Thai, Arabic and more

Hoops and cap attachment
Cap ring
Nx2
Hoop station
1
Cap driver
Nx1
[x2]
90 mm round (9 cm, 3.5”)
[x2]
120 mm round (12 cm, 4.7”)
[x2]
150 mm round (15 cm, 5.9”)
[x2]
200 mm round (20 cm, 9”)
[x2]
290 mm square (29 cm, 12”)
Optional accessories

Sequin device

Boring device

Cording device

8-in-1 device

Robot frame

Belt hoop

Mighty hoop

Camera positioning device

Laser device

Highlights

HOOPS AND CAP ATTACHMENTS INCLUDED
• 10 hoops per head (2 of each size, 5 sizes total) + sash frame
• The CHT Series is ideal for embroidery on caps, bags, denim, finished garments and plenty more.
• Each machine includes a sash frame and a variety of hoop sizes for embroidery on small, medium and large items.

SCALE YOUR PRODUCTION
• Available in up to 8 heads
• Startups can ramp up their businesses with the CHT two-head and four-head, while established businesses can scale their   production with the CHT six-head and eight-head.
